WiFi Dev Board GPS Expansion
WiFi Dev Board GPS Expansion
Couldn't load pickup availability

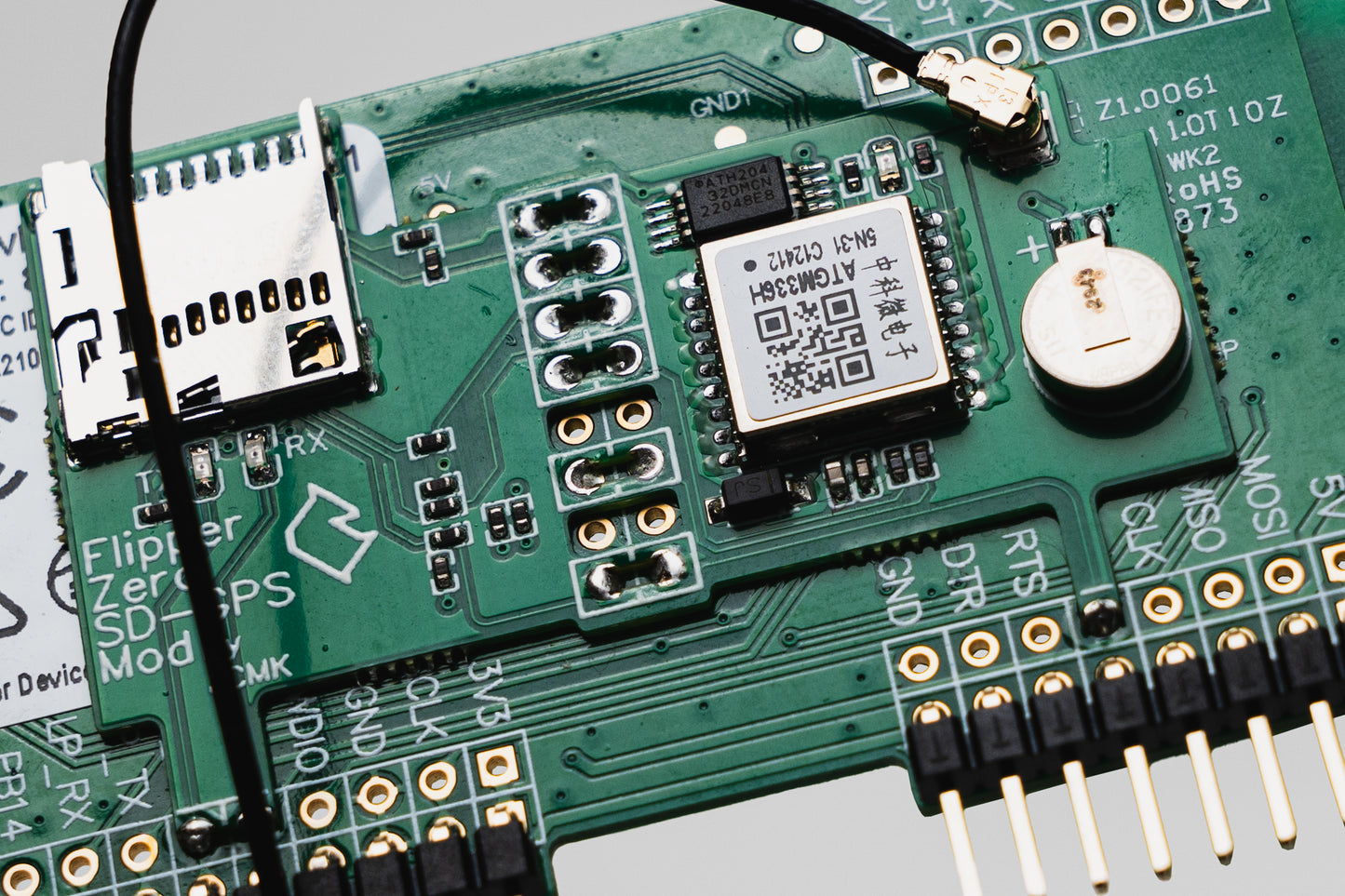

This adapter PCB attaches directly to the Flipper Zero WiFi Dev Board, providing a user friendly way to add SD and GPS capabilities to your Flipper Zero WiFi Dev Board. This will allows firmwares like ESP32 Marauder to use its external storage capability and wardriving functions. In addition to SD and GPS capability, this board features UART activity LEDs for the purpose of verifying serial communication without the use of an external debugging or display module.
If you would like an enclosure to contain and protect your dev board with the GPS expansion, check out the Flipper Zero WiFi Dev Board Expansion Enclosure.
Thicc PCB Version
We accidentally got the wrong PCBs. They are 1mm thicker than the standard expansion. They still function the same but they will not fit in the GPS expansion enclosure. You will need to use double sided tape or something similar to keep the GPS antenna in place. If you go with this option, you are doing us a great service for a mistake we made.
Installation
Installation is as simple as placing the adapter PCB against the back of the Flipper Zero WiFi Dev Board and soldering each connection. There are no wires needed.
Usage
My main intention when designing this board was to use it in conjunction with the ESP32 Marauder firmware. The Marauder firmware has the ability to capture WiFi and location data and save it to an external storage device like a Micro SD card. With the adapter board properly installed and the proper Micro SD card chosen and formatted, the Marauder firmware will recognize the storage device and use it to save the captured WiFi and location data. The included GPS module can be utilized for wardriving, coupling location data with wireless access point data.
What's Included
- 1x WiFi Dev Board SD GPS Adapter
- 1x Ceramic GPS Antenna
