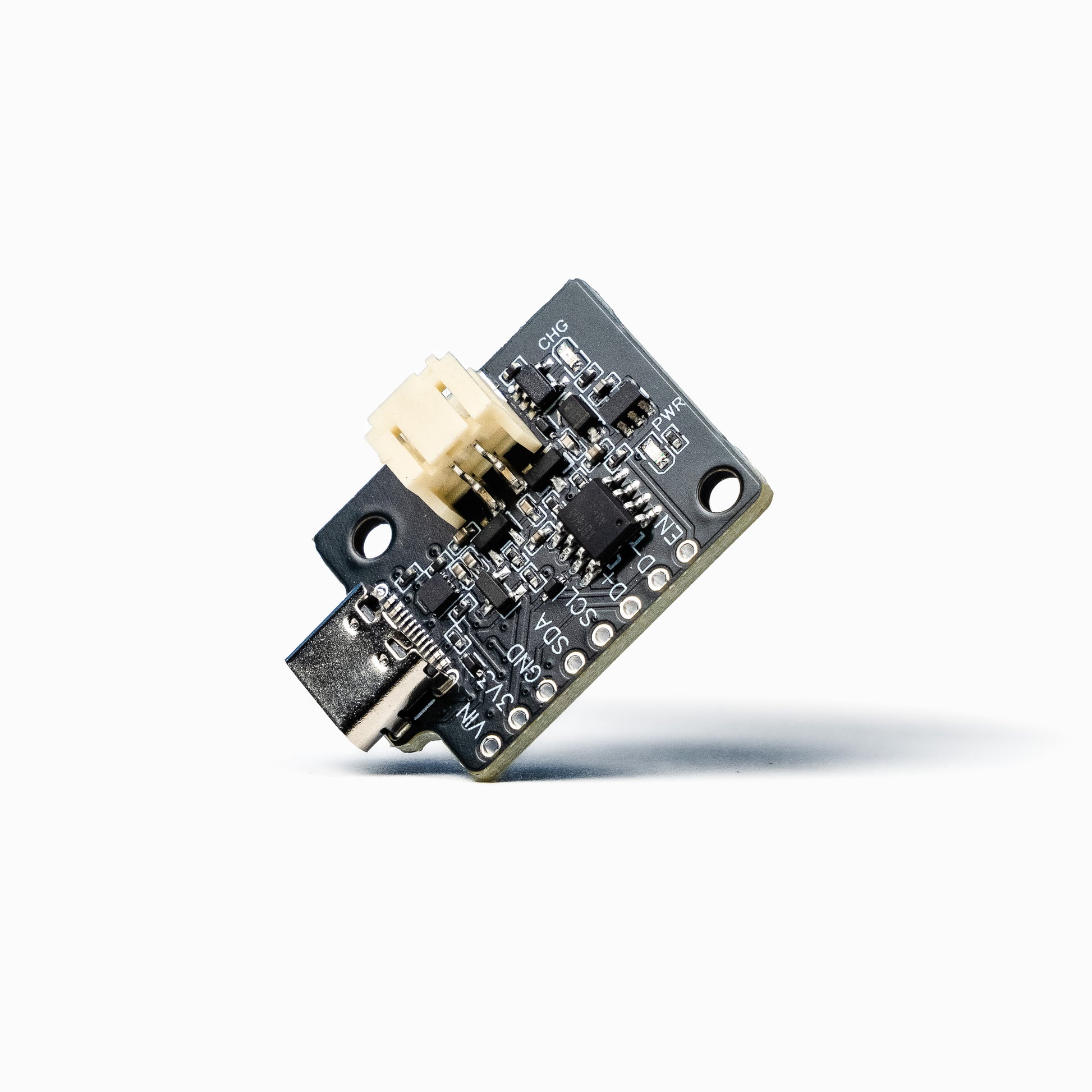

3.3V Power/Battery Management Board

A simple 3.3V power and battery management board equipped with an I2C battery fuel gauge.

Features:

• Broken out VIN, 3V3, GND, SDA, SCL, USB Data pins, EN
• USB-C input
• JST-S2B-PH-SM4-TB Battery Connector
• 2x 2.75mm mounting screw holes
• Accepts input voltage from 3.3 V to 5.5 V
• MAX17048G I2C battery fuel gauge
• 500mA charge current
• 3.3V output voltage
• 1A output current
• Two level overcharge protection
• Overdischarge protection
• Reverse polarity protection
• Charge indicator LED
• Output indicator LED
